Front View Security Monitor Camera Night Vision High Resolution
Overview
This is a closed circuit television CCTV camera car surveillance HD
dome camera. It works with 24pcs infrared LEDs to create 20 meters
infrared distance for night vision to monitor in dark environment.
It adopts 3.6mm or 6mm fixed focus lens to let you view objects
within 20 meters. It can be worked with DVR recorder, quad
processor, DVR card. It can be viewed through monitor, TV, PC,
smart phone and etc.
Main Features
1) Dome Plastic, mini size, light weight
2) Applicable to Rearview, Frontview, Sideview
3) Easy install, nice design
4) TVL optional, 800TVL/700TVL/600TVL/480TVL/420TVL
5) Different color for option, white or black
6) With audio for option
7) Most competitive price
Technical Specifications
| Image Sensor | 1/3" 420TVL SONY CCD | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
| Video System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Pixels | PAL:582(H)*510(V) | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
| NTSC:510(H)*492(V) | NTSC:768(H)×494(V) | NTSC:976(H)×494(V) |
| Horizontal Resolution | 420 TVL | 600 TVL | 700 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 120° | 120° | 120° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V | DC12V±0.5V |
| Consumption | 100mA±10% | 100mA±10% | 70mA±10% |
| Display image | Mirror/normal optional | Mirror/normal optional | Mirror/normal optional |
| MIC | Optional | Optional | optional |
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products
will run through over 4 times’ 100% testing before being delivered.
Installation picture

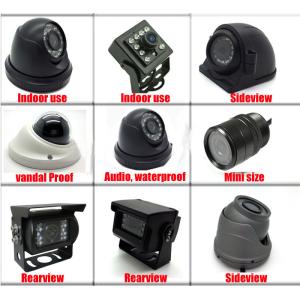

Cameras for Options
